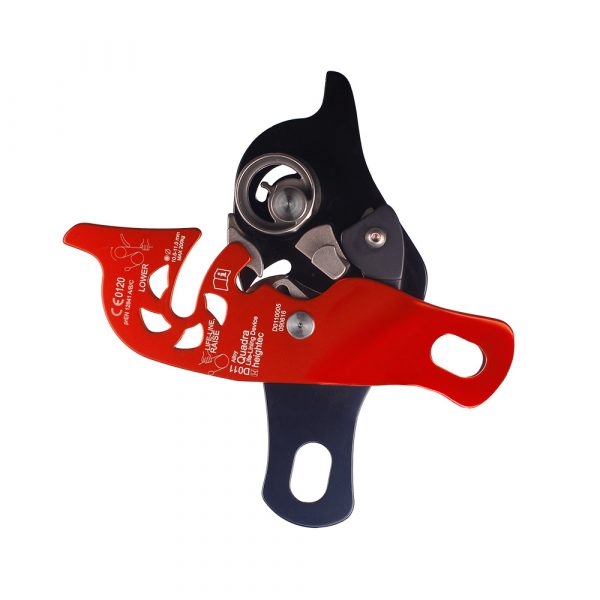

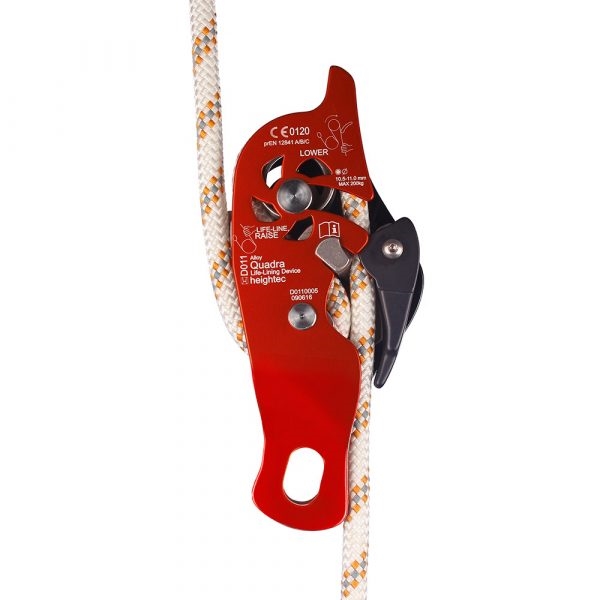

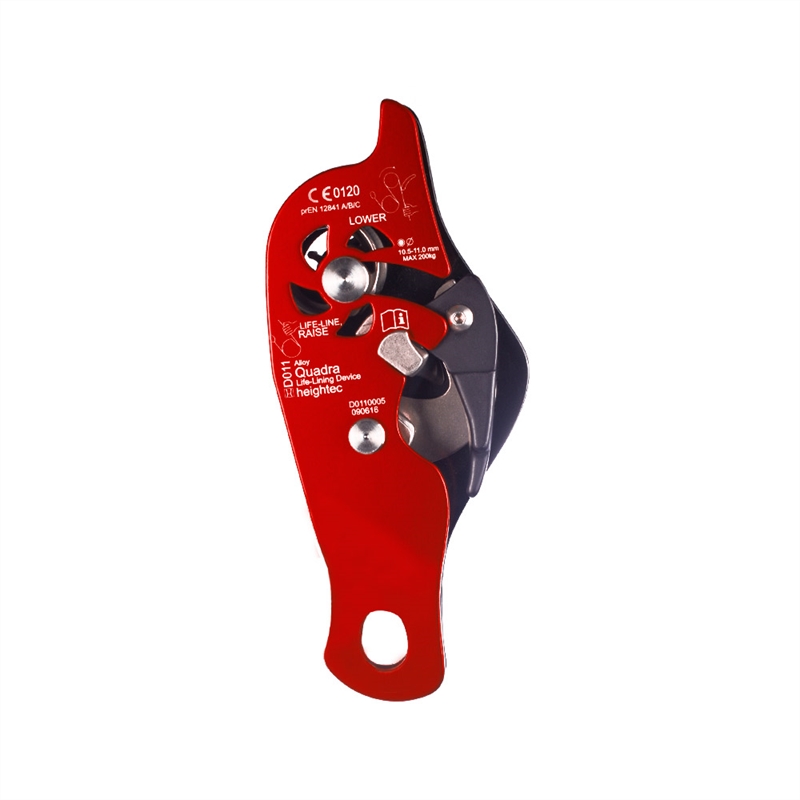

Description

  • Life-lining – controlling a safety line attached to a rescuer
  • Lowering – remotely controlling a load
  • Hauling – self-locking load raising
  • Descending – self lowering of operator

Operator is able to change from one function to another instantly, while rope is loaded and without adding additional components.

Patented double-braking mechanism increases friction under heavy loading and reduces rate at which friction is released.

Inspection and cleaning is simple as all component parts of device are visible and accessible.

QUADRA is rated at 200 kg making it suitable for most rescue applications. It also has capacity to arrest a 250 kg load at fall factor 1/3 without damage to rope and retaining full function. All load bearing components are stainless steel for corrosion resistance and reduced spark hazard.

Updated versions have improved threading and durability without changing performance or method of performance.



  • Multi-function, can change between functions under load
  • Double-braking mechanism
  • All component parts visible
  • High load capacity
  • Lightweight alloy construction



Material: Aluminium

Weight (Kgs): 0.52

Colour: Red

Accreditation: prEN 12841(A,B,C)

Rope Diameter (mm): 10.5mm - 11mm diameter

Safe Working Load (Kgs): 200 kgs
